Tenant Admin Console

The Tenant Admin Console provides System Administrators the capability to manage devices, polices and users for their tenant, as well as monitoring system status, device status and access controls.

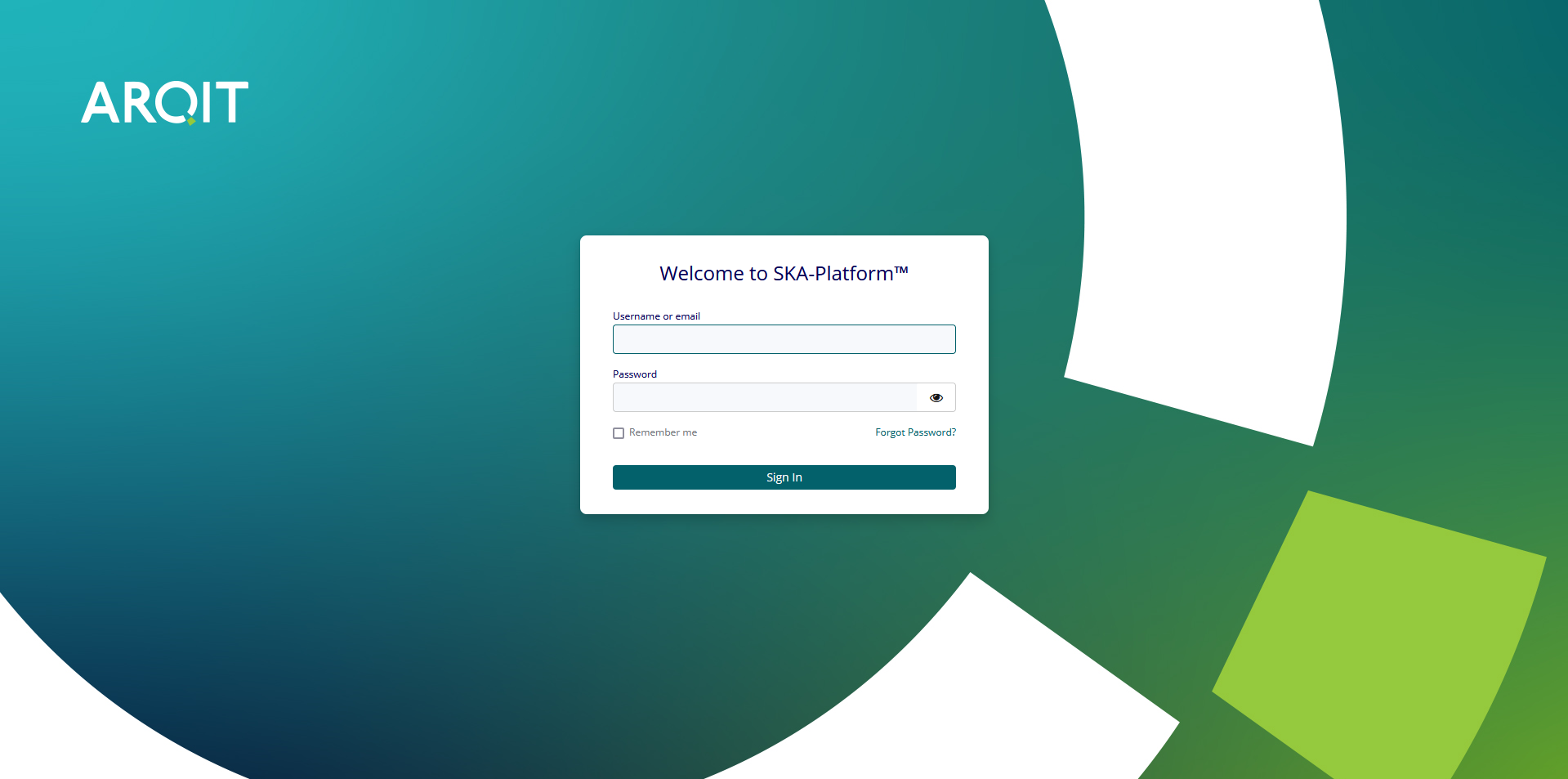

Accessing the Tenant Console

The console is accessed through a subdomain specific to your organisation:
https://<MY-TENANT-NAME>.console.<MY-DOMAIN>

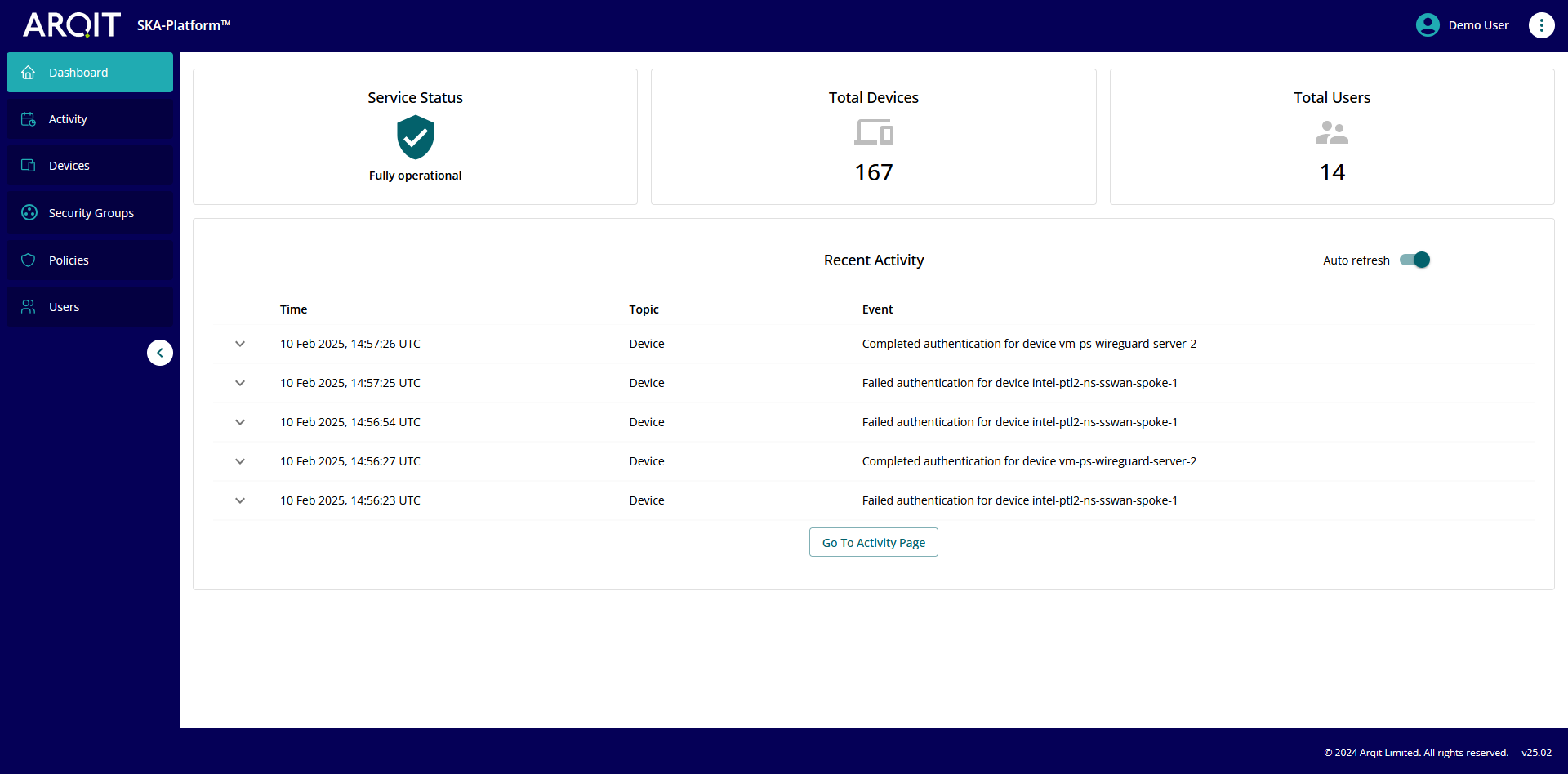

Dashboard

The dashboard provides some statistics for the tenant including: service status, number of registered devices and total number of users.

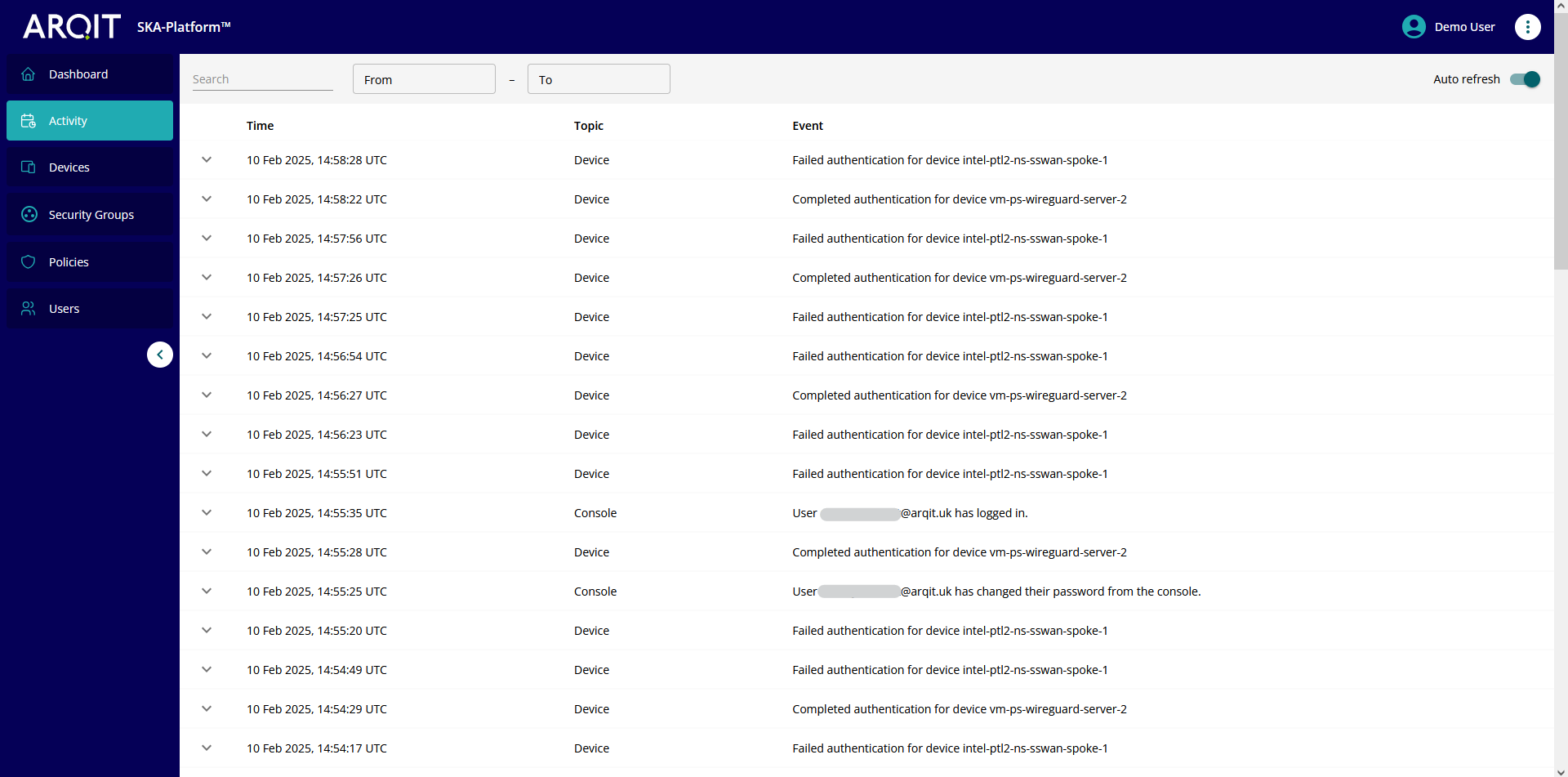

Activity

The Activity page provides a paginated list of events for the tenant.

The page will auto refresh by default. This can be turned off using the “Auto refresh” toggle.

Activity events can be filtered using the search box. This enables searching for events related to specific devices, users and event topics. Results can be narrowed further using the ‘From’ and ‘To’ search criteria.

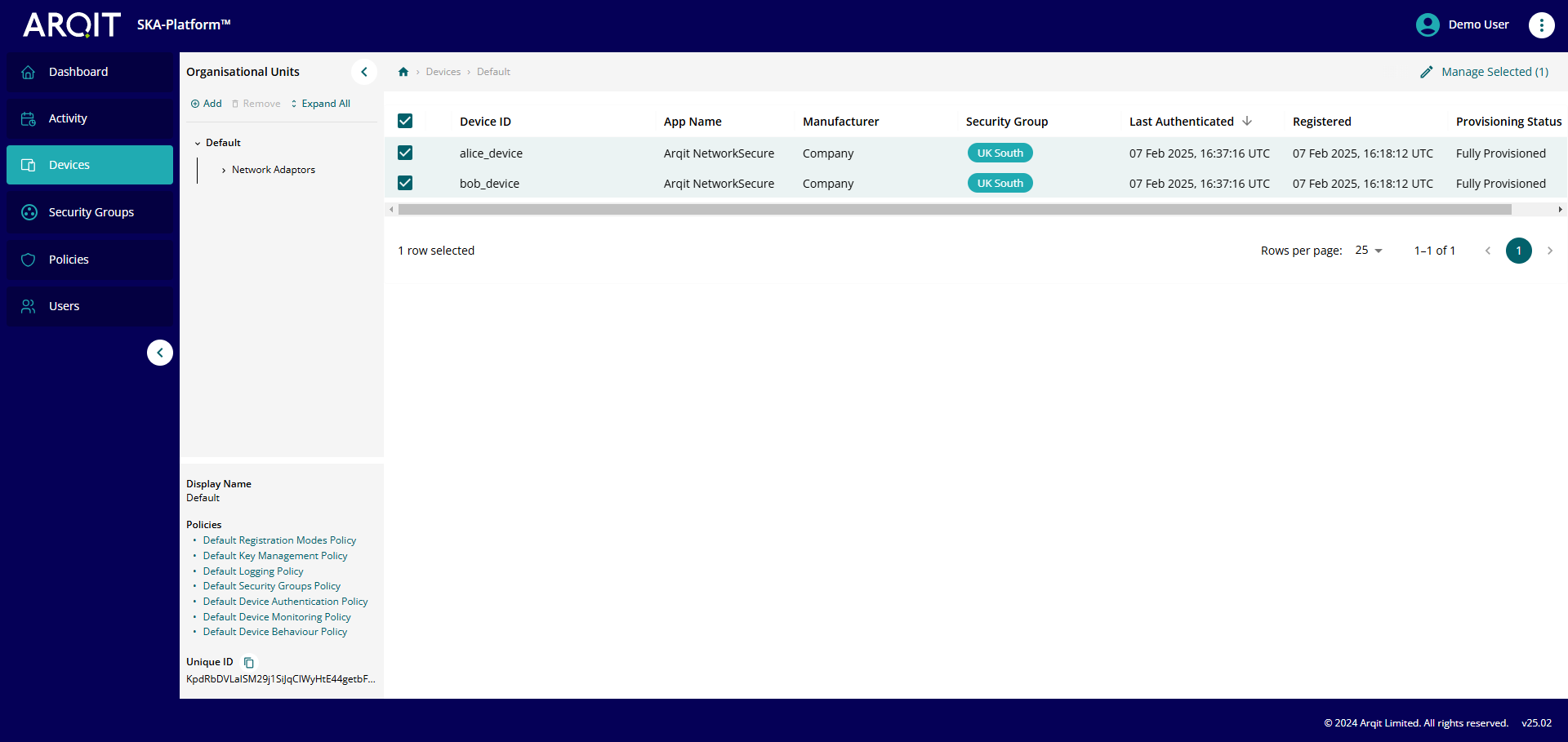

Devices

The Devices page provides information about all the registered devices on the platform.

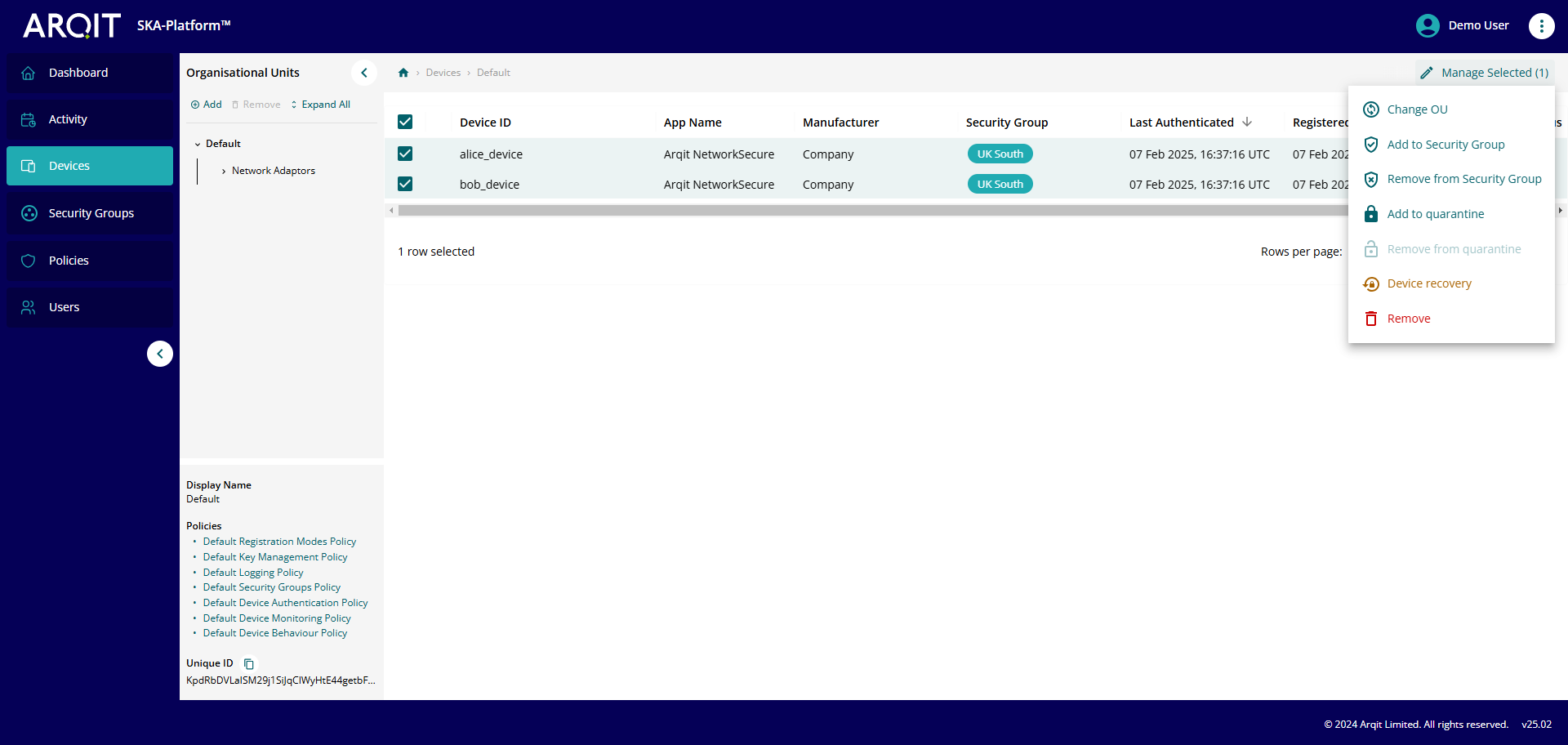

Groups of devices can be managed by select devices using the checkboxes and selecting the ‘Manage Selected’ button.

Options available are:

• Change OU - Change the Organisational Unit in which the selected device(s) sits.

• Add to Security Group - Add to the list of Security Groups the selected device(s) is a member of (see Security Groups below).

• Remove from Security Group - Remove the selected device(s) from specified Security Groups.

• Add to Quarantine - Quarantine the selected device(s). Quarantined devices are placed in a a new ‘Provisioning Status’ (‘Quarantined’) whereby they are prevented from negotiating any new keys with other devices.

• Remove from Quarantine - Remove the selected device(s) from quarantine. This will restore devices to their previous ‘Provisioning Status’ and key negotiating functionality will be restored.

• Device Recovery - Returns the selected device(s) to it’s ‘Registered’ state. All device associations will be preserved.

• Remove - Deregisters the selected device(s) and removes all data for the device from the platform excluding Activity data.

Organisational Units

System Administrators can organise devices into ‘Organisational Units’ (OUs). An OU is a hierarchical structure.

System Administrator are able to create, modify and delete OUs and move devices between them.

All newly registering devices will be placed in the default OU and be subject to the policies applied to it, with the exception of Arqit NetworkSecure™ devices which will be placed in the ‘Network Adaptor’ OU.

Policies

Device behaviour is governed by the policies applied to each device. Policies are inherited hierarchically, with precedent given to policies applied further down.

Policies applied to OUs can be viewed and edited via the OU details panel.

Policies applied to a device can be viewed and edited via the Device Details panel.

For information about creating and managing policy instances, see Managing Policies section below.

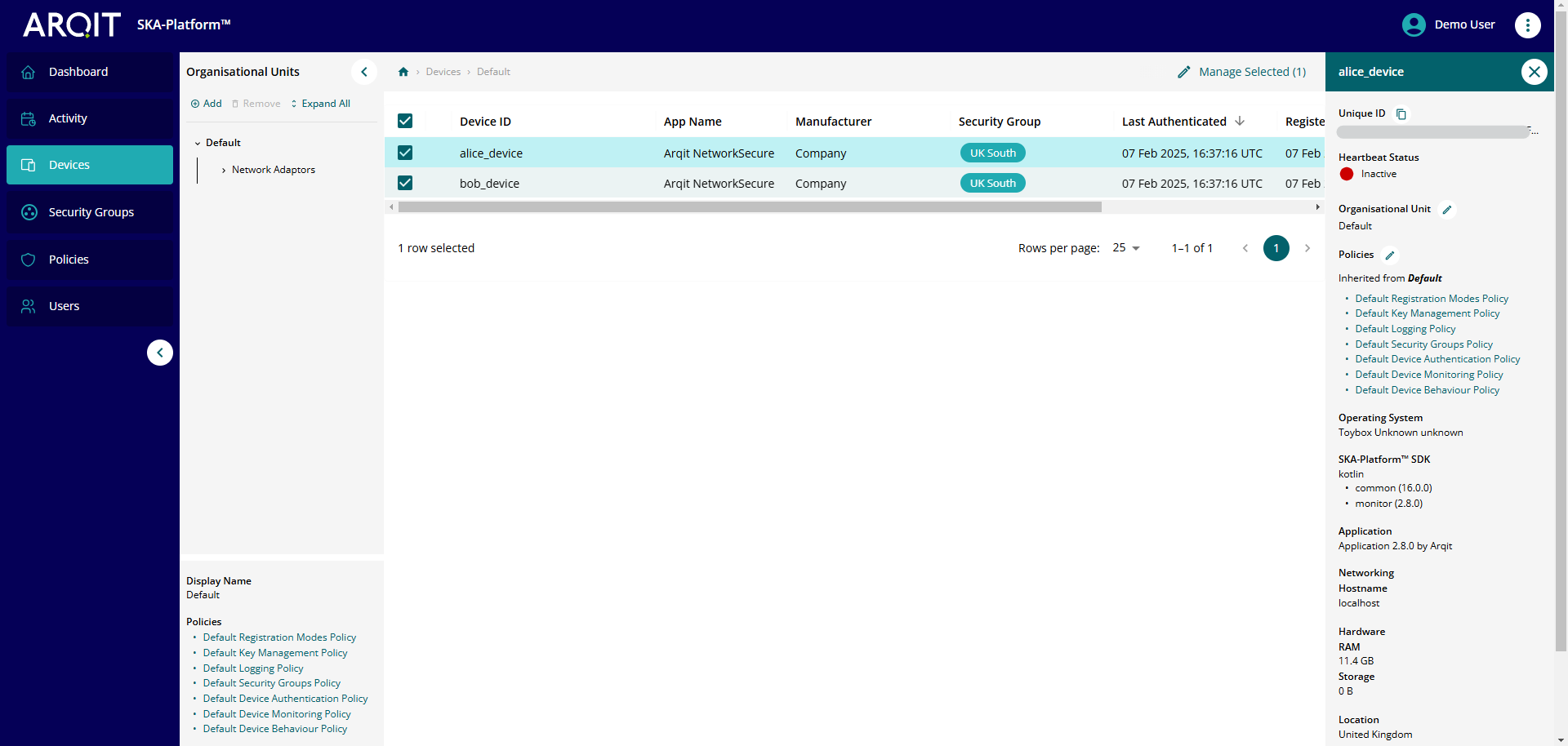

Device Details

Selecting any device in the Device page opens the ‘Device details’ side panel on the right the screen.

Heartbeat Status

Devices are able to send a periodic heartbeats to the platform, allowing System Administrators to monitor the devices status:

• Active (green) - a heartbeat message has been received recently

• Recently Active (amber) - a heartbeat message has been received but less recently

• Inactive (red) - no heartbeat message has been received for a large period of time

• Unknown (grey) - no heartbeat message has ever been received for the device

Hovering over the status icon will provide details of the last received heartbeat from the device.

Organisational Unit

The details of the organisational Unit the device sits in.

Device Policies

The various policies applied to the device, including from where they are inherited (directly applied or by membership of an OU).

Device Properties

Devices are able to scrape information about their environment, add other relevant information and send it to the platform, allowing these properties to be viewed in the Device Details panel.

Security Groups

Security Groups can be used to restrict devices ability to negotiate keys with one another. When enabled, devices must be members of at least one mutual Security Group in order to negotiate keys with one another.

Security Group enforcement is disabled by default for the tenant (all devices can peer with all others). It can be enabled via the Policies page.

Security Groups

The Security Groups page allows the creation, modification and deletion of Security Groups within the tenant. Security Groups can be used to restrict devices ability to negotiate keys with one another.

Policies

Selecting “Policies” in the left sidebar will bring you to the policies page. Here, you can see Attributes about each policy in a tabular list. You can also edit details, clone and delete policies by using the icons in the ‘Action’ column. You cannot directly create new policy instances, you must clone an existing instance of a policy type, edit it and apply it to the desired Organisational Unit or Device (see Managing Devices section above).

For details on the types of settings in each policy type, see table below:

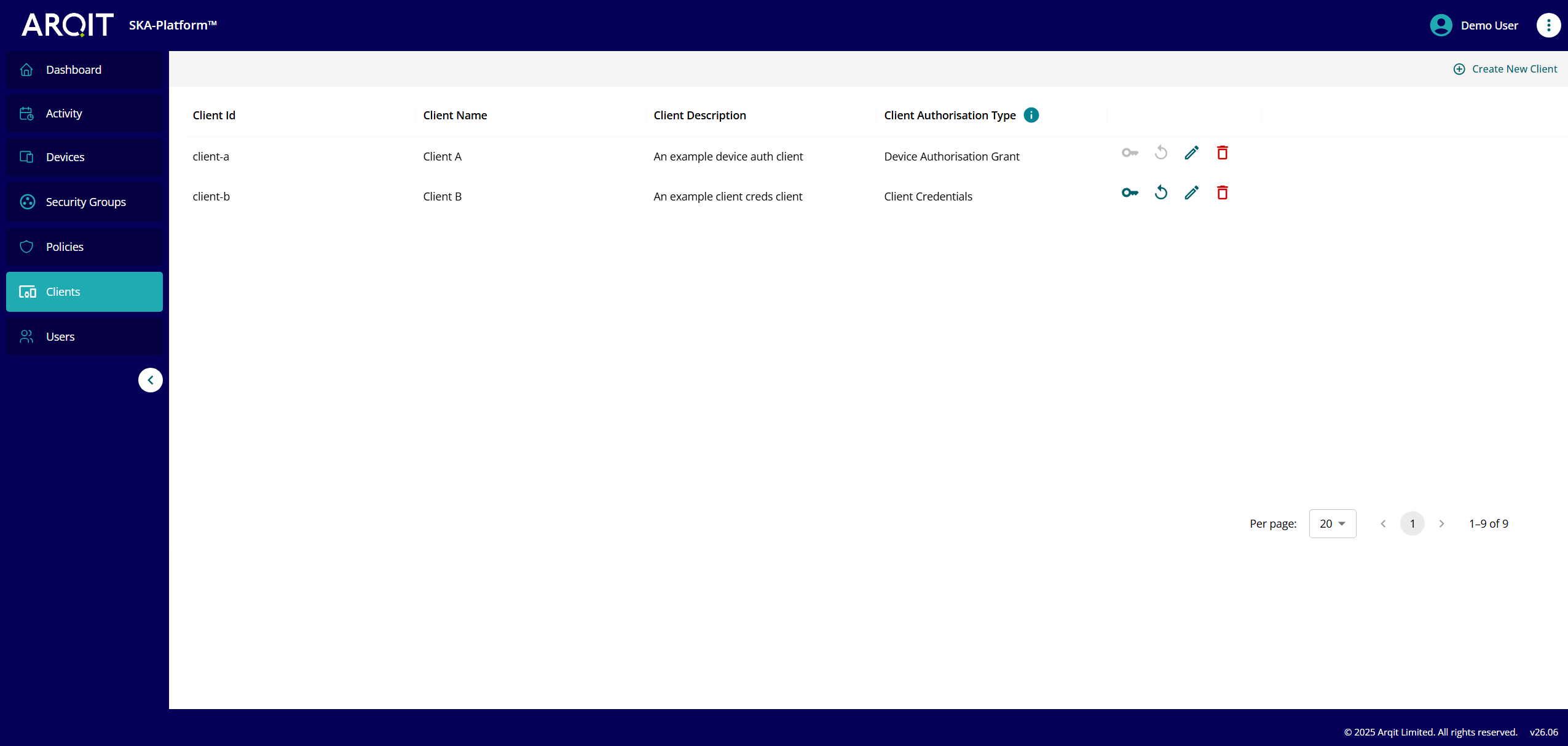

Clients

The Clients page provides tenant administrators the ability to manage OAuth2.0 clients used for the device registration workflow.

Users

The Users page provides tenant user management capabilities. You can invite, update and remove users. System Administrators can also modify a users role:

Support

If you encounter any issues using the console please visit the Customer Support Portal.
